PC platform: Windows XP & Vista

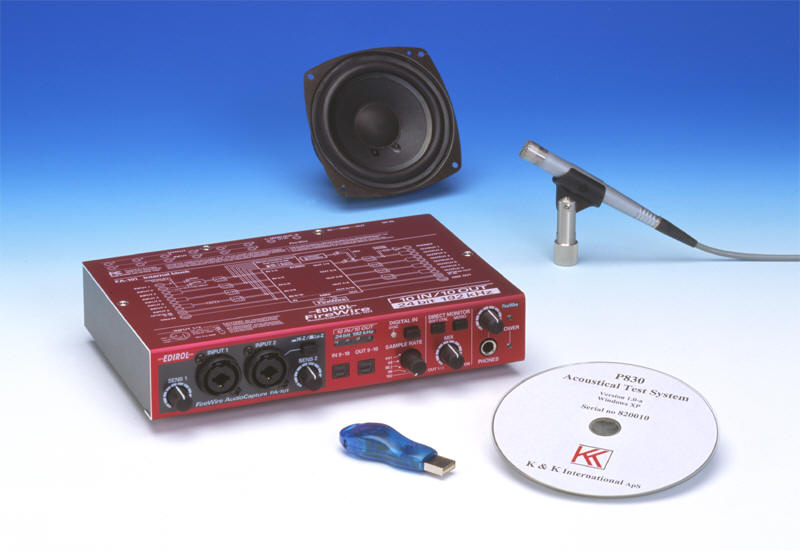

The P830 consists of a Fire Wire Audio Capture FA-101 and P830 software
for Windows XP & Vista.
P830 is like the P730 Picro Pro however with Fire Wire and up to 8 inputs
with a maximal sample rate of 192 KHz and a resolution of 24bit.
To complete a P830 as a test system, only an external power amplifier have
to be added together with a microphone and a PC. To use of input 3 to 8 a
external preamplifier have to be added.
As optional an external USB Gain Controlled Pre Amplifier with I/O
control can be added to enable software controlled input amplification and
external control with the system as start test and as return the test
results. Up to 4 unit can be added to P830 to cover all 8 inputs.
See USB Pre Amp.
 |
The structure of the
software is the same as the P730 Picro Pro system. With a external I/O control as shown on picture the system become with some powerfully external controls functions. |
The P830 system can be used for analysis of the
following acoustic test parameters:
Frequency response, sensitivity, polarity, Rub & Buzz, THD, impedance,
resonance and F (Fres./Q).
The software is arranged in four modes, an operator
mode, a technician mode, a global set-up mode, and a utility mode, which
all are protected by passwords.
