P530

PC platform: Win98 / Win2000 / NT4.0 / XP

With its fast test time and high performance the P530 are very cost-effective in a fully automated environment. In less than 1 seconds it performs measurement of 250 different frequency points and tests parameters as frequency response, sensitivity, polarity, Rub & Buzz, THD, impedance, resonance, loudness, Q and F (Fres/Q). Each test data from the measurements are saved for future statistics and post-processing.

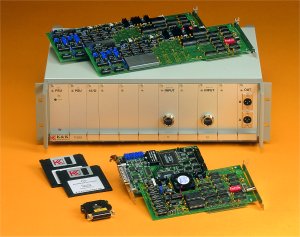

P522.jpg (19632 bytes) The P530 generates sufficient power with the internal power amplifier to energize all defects from air-gap problems, puffing sounds, loose particles, constrained voice coil, cabinet rattling, litze wire clatter, glue problems etc., which generally speaking are known as Rub & Buzz distortion.

P530 are able to measure microphone frequency response due to the built-in output compress function. This enables a constant signal pressure even from a standard loudspeaker.

Frequency flatness of less than 0.2 dB can be obtained in a microphone test, with a reference microphone. Even in a production environment.

The system consists of a service friendly 19" cabinet with standard sized modules plus oscillator card, a data acquisition card and filter cards to be installed in a standard PC.
The cabinet contains protected 15 volt rms. power amplifier (optional 20 volt rms.) , up to 6 different input modules, an I/O module and microphone power supply.

The software is arranged in four modes, an operator mode, a technician mode, a global set-up mode, and a utility mode, which all are protected by passwords.

The operator mode is for day-to-day production testing of parameters already set-up in the technician mode. This mode is specially designed for non skilled personnel or for fully automated operations.

In the technician mode all parameters as frequency range, test level, reference curves limits, Rub & Buzz and THD filters etc. are customized to the specific requirements for each individual test.

In the global set-up the graphical presentation, test control, paths for files, chain of tests, statistics etc. are defined.

For post-processing and manipulation of stored data there are a number of Utility functions as Export and Import of data, Statistical analysis and graphical display of batch data etc. The statistical analysis including calculation of various numbers of standard deviation and average curves to determine the test limits. The analysis is able to find a best matched measured unit against the average or another unit.

The P530 is as standard equipped with two inputs. There are as standard three analyzing channels, one for frequency response, one for impedance and one for distortion / Rub & Buzz. Extra inputs (up to six) and an extra analyzing channel (total of four) can be added to the system.

All necessary hardware, cables and software etc. are included in a standard delivery except for suitable microphones and standard PC.
